QuickProp, ADAGRAD and Momentum: three ways to guess a learning rate

Last time, RPROP threw away the magnitude of the gradient entirely and kept only its sign. The next three algorithms in the report go the other way: each one is a different bet about what the gradient’s size is telling you. QuickProp bets that the error curve is a parabola and jumps straight to its vertex. ADAGRAD bets that a weight which has already moved a long way should take smaller steps from now on. Momentum bets nothing in particular: it just keeps some of whatever it was doing last time.

Two of the three are solid, boring, and outperform plain backprop with fewer knobs to tune. The third is the most interesting failure in the whole assignment.

QuickProp: fit a parabola, jump to the bottom

Quickprop’s assumption (report §6, PDF pp. 13–14, printed pp. 11–12) is that the error with respect to a single weight looks like a parabola, and that moving one weight barely disturbs the error contributed by any other weight, so each weight can be optimised as if it lived alone on its own one-dimensional curve:

E(w,t) = aw^2(t) + bw(t) + c \tag{6.1}

Differentiate, and set the derivative to zero at three points in time: the vertex condition applied at $t-1$ , $t$ and the not-yet-known $t+1$ :

\frac{\partial E(w,t)}{\partial w} = E'(w,t) = 2aw(t) + b = 0 \tag{6.2}

E'(w,t-1) = 2aw(t-1) + b = 0 \tag{6.3}

E'(w,t+1) = 2aw(t+1) + b = 0 \tag{6.4}

Two consecutive gradients are enough to solve for the parabola’s curvature, $2a$ , since $b$ cancels between Eqns 6.2 and 6.3:

2a = \frac{E'(w,t) - E'(w,t-1)}{w(t) - w(t-1)} \tag{6.5}

and $b$ falls out of Eqn 6.2 once $a$ is known:

b = E'(w,t) - 2aw(t) \tag{6.6}

Substituting both into Eqn 6.4 and solving for $w(t+1)$ gives the whole algorithm in one line: jump directly to the vertex of the fitted parabola:

w(t+1) = w(t) + \Delta w(t-1)\,\frac{E'(w,t)}{E'(w,t-1) - E'(w,t)} \tag{6.7}

No learning rate anywhere in that formula. If the error really is a parabola in this weight, one step lands exactly on the minimum. That is the appeal, and it is also exactly where it breaks: the moment $|E'(t)|$ stops being smaller than $|E'(t-1)|$ , the denominator shrinks towards zero and the proposed step towards infinity. The report’s fix is a clamp, $\mu$ , on how much bigger this step is allowed to be than the last one, plus a fallback to plain backprop whenever the two-point fit can’t be trusted yet:

procedure QuickPropagation(input Matrix, Target Matrix, η, µ)
  for each w in the neural network's weights do:
    E'(t) ← the gradient associated with the current weight.
    Scale ← E'(t) / (E'(t − 1) − E'(t))
    Scale ← clip(Scale, −µ, µ)
    Δw(t − 1) ← Scale · Δw(t − 1)
    if sign(E'(t − 1)) == sign(E'(t)) or E'(t − 1) < 1e−15 then
      Δw(t − 1) ← Δw(t − 1) − η E'(t)
    end if
    w(t) ← w(t − 1) · Δw(t − 1)
  end for
end procedure

(That last line is printed with a ”·” in the report, PDF p. 14, printed p. 12: it should be ”+”, matching Eqn 6.7 and the actual code below. A transcription slip, not an algorithmic one.)

The supplementary backprop step fires whenever the two most recent gradients agree in sign, meaning the curve hasn’t turned over between them, so there’s no vertex to jump to yet, or whenever the previous gradient is too small to trust. The real code, Classes/QuickProp.py:QuickPropLayer.backwardPropagate, lines 42–64:

dEdW = np.dot(deltaM.T, self.prevX).flatten()
dEdBias = np.sum(deltaM, axis=0).flatten()

scale = np.nan_to_num(dEdW/(self.pdEdW-dEdW))
np.clip(scale, -self.mu, self.mu, scale)
self.pDw = scale*self.pDw
inds = np.where(np.logical_or(np.sign(dEdW)==np.sign(self.pdEdW), self.pdEdW<1e-15))
self.pDw[inds] -= learningRate*dEdW[inds]

self.pdEdW=dEdW.copy()
self.pdEdBias=dEdBias.copy()
self.WeightMatrixT.flat += self.pDw
self.BiasVector += self.pDbias

self.pDw and self.pdEdW are both zero-initialised, which is what makes the very first update reduce cleanly to plain gradient descent: self.pdEdW < 1e-15 is true when pdEdW is still zero, the supplementary branch fires for every weight, and the quadratic-fit term is scale * self.pDw = scale * 0 = 0 anyway.

Two numbers in Table 2 aren't what actually ran

Going back through QuickPropTestProben1.py to write this, I found that two numbers in Table 2 (PDF p. 19, printed p. 17) aren’t what actually ran. The table lists QuickProp’s hyperparameters as $\eta = 2$ , $\mu = 1.75$ . Line 93 constructs the network with mu=1.00, and line 30 sets a flat learningRate=0.8 that’s passed unchanged into every backwardPropagate call for every dataset (line 111). Neither figure in the table matches what ran.

There’s a second, stranger thing in the same file, and it’s a nice one to dig up years later. Lines 20–26 build a whole per-dataset learning-rate list, learningRates=[0.1,0.05,0.05,0.1,0.1,0.001], and the main loop even unpacks it into a variable, learningRateR, at line 54, which is then never read again anywhere in the file. Every dataset trained with the flat 0.8, and the per-dataset list is dead code that looks, at a glance, like it’s doing something.

One more worth knowing about, smaller: the underflow check is self.pdEdW < 1e-15, not abs(self.pdEdW) < 1e-15. Any negative previous gradient also satisfies “less than 1e-15”, so the supplementary backprop term fires there too, not just when the previous gradient genuinely underflowed toward zero.

ADAGRAD: shrink the step by how far you’ve already moved

ADAGRAD (report §7.1, PDF p. 14, printed p. 12, Algorithm 8) keeps a running sum of squared gradients per weight and divides the learning rate by its square root, so a weight that has already accumulated a lot of gradient takes smaller steps from then on:

procedure ADAGRAD(input Matrix, Target Matrix, η)
  Forward propagate each input and store Z^(m-1) and Z^(m) for each layer m, m ← 1 to M
  errorContrib ← Σ_{inputs,targets} (Z^(M) − t)
  gτ ← 0
  for m from M down to 1 do
    Calculate δ^(m) using Eqn. 4.14.
    ∂E/∂W^(m) ← gradient associated with each weight.
    gτ ← gτ + (∂E/∂W^(m))²
    W^(m)(t+1) ← W^(m)(t) − (η / √gτ) · δ^(m) · (Z^(m−1))ᵀ
    errorContrib ← W^(m) · δ^(m)
  end for
end procedure

The actual layer, Classes/MomentumLayer.py:NetworkLayerWithAdaptiveWeights.backwardPropagate, lines 94–103:

deltaBiasM = -learningRate*deltaM

holdOut = np.dot(deltaM, self.WeightMatrixT)
holdDw = np.dot(deltaBiasM.T, self.prevX)

self.HdEdW += holdDw**2
self.HdEdBias +=np.sum(deltaBiasM, axis=0)**2

self.WeightMatrixT += (holdDw / (1e-10 + np.sqrt(self.HdEdW)))
self.BiasVector += (np.sum(deltaBiasM, axis=0) / (1e-10 + np.sqrt(self.HdEdBias)))

Reading that carefully turned up something I hadn’t noticed before: it isn’t quite Algorithm 8. holdDw is already -η·∂E/∂W, the learning rate is baked in before it’s squared and accumulated into self.HdEdW. So the accumulator holds $\eta^2 \sum_\tau (\partial E/\partial W_\tau)^2$ , not $\sum_\tau (\partial E/\partial W_\tau)^2 = g_\tau$ as Algorithm 8’s line 8 says. Carry that through the update:

\Delta W = \frac{-\eta \cdot \partial E/\partial W}{10^{-10} + \eta\sqrt{g_\tau}} \approx \frac{-\partial E/\partial W}{\sqrt{g_\tau}}

for any $\eta$ not absurdly close to zero: the $\eta$ in the numerator and the $\eta$ inside the square root in the denominator cancel. That was a fun one to catch, so I checked it wasn’t just algebra that looks right: I ran the update in Python for five made-up gradients with $\eta \in \{0.5, 3, 30, 300\}$ (a 600× range), and the resulting weight after five steps agreed to nine significant figures every time.

ADAGRAD's learning rate does almost nothing

Working this through is what turned up the nicest find in this post: the code’s own $\eta$ cancels out of the update almost entirely, so Table 2’s $\eta = 3$ for ADAGRAD (and the runner’s actual learningRate=2 at ADAGRADTestProben1.py:33, a third, smaller mismatch with the table) barely matter to what the algorithm does. The step really taken is close to $-\partial E/\partial W \big/ \sqrt{\sum_\tau (\partial E/\partial W_\tau)^2}$ , a gradient direction normalised by its own history, independent of $\eta$ except through the $10^{-10}$ floor. On the very first step, $g_\tau$ equals that step’s own squared gradient, so the update collapses to almost exactly $-\mathrm{sign}(\partial E/\partial W)$ : ADAGRAD’s opening move is a unit step in each direction, whatever $\eta$ is set to.

The report’s own read on ADAGRAD (§13) is that it “had a similar performance to the backward propagation algorithm but had less parameters to tune”, which, given the finding above, is generous to backprop and exactly right about the tuning: there’s effectively nothing to tune.

Momentum: keep doing what you were doing

The plainest of the three (report §7.2, PDF p. 15, printed p. 13, Algorithm 9). Keep a fraction $\alpha$ of the previous step and add it to the current one:

procedure Backward-Propagation-With-Momentum(input Matrix, Target Matrix, η, α)
  Forward propagate each input and store Z^(m-1) and Z^(m) for each layer m, m ← 1 to M
  errorContrib ← Σ_{inputs,targets} (Z^(M) − t)
  ΔW^(n) ← 0
  for m from M down to 1 do
    Calculate δ^(m) using Eqn. 4.14.
    ∂E/∂W^(m) ← gradient associated with each weight.
    ΔW^(n) ← −η δ^(m) · (Z^(m−1))ᵀ + α ΔW^(n)
    W^(m)(t+1) ← W^(m)(t) + ΔW^(n)
    errorContrib ← W^(m) · δ^(m)
  end for
end procedure

Classes/MomentumLayer.py:NetworkLayerWithMomentum.backwardPropagate, lines 25–31, is a faithful line-for-line match: no discrepancy to report here, a pleasant change:

deltaBias = -learningRate*deltaM

self.prevDW = np.dot(deltaBias.T, self.prevX) + self.Momentum*self.prevDW
self.prevDbias = np.sum(deltaBias, axis=0) + self.Momentum*self.prevDbias

self.WeightMatrixT += self.prevDW
self.BiasVector += self.prevDbias

Table 2’s $\alpha = 0.2$ matches MomentumTestProben1.py:95 exactly. Its learning-rate row (“exponentially decays from 0.8 at epoch 1 to 0.005 at epoch 25”) is only true for four of the six datasets. MomentumTestProben1.py:27–32 sets the decay’s starting value per dataset: flare, gene, horse and heartc do start at 0.8, but cancer and card start at 2, ten times higher than QuickProp’s own supposedly-2 learning rate turned out to actually be.

What the benchmark said

Each algorithm ran 30 times per dataset per architecture with PQ $_{0.5}$ early stopping. Below is the gene dataset (120 inputs, 3 outputs, a 120×4×2×3 network), the case the report itself points to for QuickProp’s failure mode (§13, referencing §12.1.4).

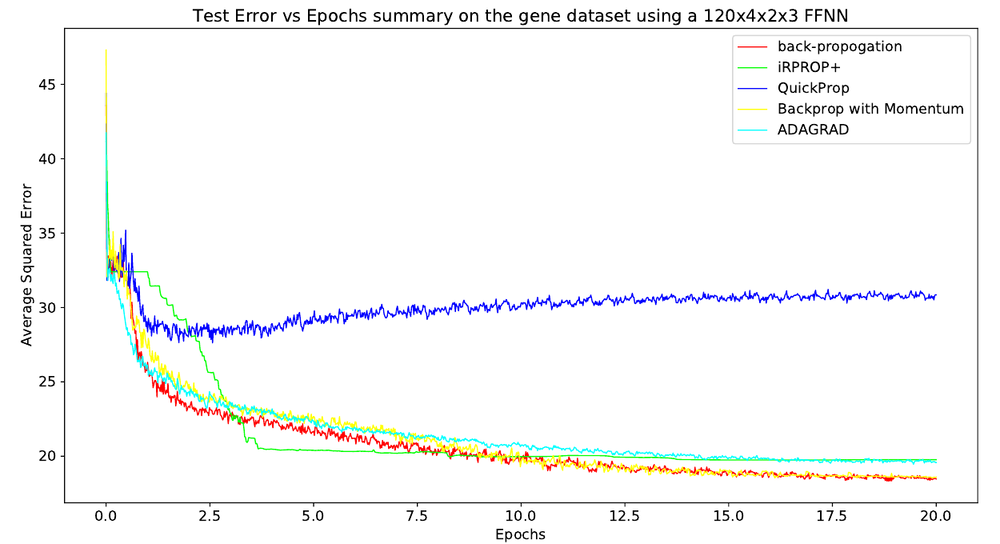

Test error against epochs for backpropagation, iRPROP+, QuickProp, backprop with momentum and ADAGRAD on the gene dataset. QuickProp falls to about 28 in the first epoch, then climbs back up to about 31 and stays there for the rest of training, while all four other algorithms settle near 20. — Report Figure 34, PDF p. 37 (printed p. 35). Average squared error percentage on the test set, gene dataset, 120×4×2×3, averaged over 30 trials. QuickProp (blue) is the only curve that goes back up.

Box-and-whisker plot of epochs until termination for eleven algorithms on the gene dataset. QuickProp's box and whisker span roughly 10 to 60 epochs, one of the widest ranges in the plot; backpropagation and iRPROP- terminate almost immediately every trial. — Report Figure 39, PDF p. 39 (printed p. 37). Epochs until PQ $_{0.5}$ stopped training, same dataset and architecture, all eleven algorithms, 30 trials each.

On ADAGRAD and momentum, the same section: “The ADAGRAD algorithm had a similar performance to the backward propagation algorithm but had less parameters to tune… Adding momentum to the backward propagation does not affect performance much for small datasets like proben1. It does however make it more likely to reach a global minimum… Especially when there is less redundancy in the parameter space, such as in Sec. 12.1.2, one can see that backward propagation with momentum tends to achieve a lower error and a smaller test error range.”

Watch QuickProp fit its parabola

This is the picture that makes Eqns 6.5–6.7 click. Pick a surface, press Step. Each press samples the gradient at the current weight, draws it and the previous sample as two tangent lines, solves the one parabola through both (the dashed curve), and proposes a jump to its vertex. The faint arrow is that raw, unclamped jump; the solid one is what actually happens once $\mu$ truncates it and, often, a plain backprop nudge is added on top.

InteractiveWatch QuickProp fit its parabola

With JavaScript on, this becomes a step-by-step panel: pick a clean quadratic, a quartic with two minima, or a noisy surface, and step through QuickProp fitting a parabola to two sampled gradients and jumping toward its vertex, with a µ slider that physically shortens the jump.

On the clean quadratic, QuickProp’s assumption is exactly true: after the first (plain-backprop) step, the second step’s fitted parabola is the real curve, and it lands on the minimum in one move regardless of $\mu$ . On the quartic, watch what happens when the two sampled gradients straddle the local maximum between the two minima: the fitted parabola opens the wrong way (negative curvature), its “vertex” is a maximum, and the proposed jump can point away from both minima entirely. On the noisy surface, two nearby points can produce a wildly different curvature estimate from one step to the next, which is the mechanism behind the gene-dataset plot above: not one bad step, but the estimate itself being unreliable on anything that isn’t a clean bowl.

The same race, four algorithms

Post 7’s contour racer, unchanged, with the four RPROP variants swapped for plain gradient descent, momentum, ADAGRAD and QuickProp. Drag the start point, tick the algorithms you want, and watch what each one’s bet about the surface actually buys it, including QuickProp leaving the plot.

The report's own record of QuickProp diverging: test error rising back up on the gene dataset while backpropagation, iRPROP+, momentum and ADAGRAD all converge — InteractiveOptimiser race

Set $\mu$ above about 1.5 on Beale or the double well and QuickProp reliably shoots off the edge within a handful of steps: the corner gradients there are enormous, two consecutive samples rarely have similar magnitude, and the scale ratio keeps slamming into the clamp in the same direction. Turn $\mu$ down toward 0.1 and QuickProp behaves like a nervous, slow gradient descent that never trusts its own curvature estimate enough to speed up.

The “learning-rate roulette” button drops the shared start point somewhere random on the surface and asks you to guess which algorithm gets to the minimum first, before it plays out automatically; the little table underneath keeps score across rounds. On Beale, gradient descent and ADAGRAD win the most rounds in my own testing; QuickProp either wins spectacularly fast, when the corner gradients happen to hand it a good curvature estimate, or diverges and is disqualified. That is the whole algorithm in miniature.

Table 2, transcribed

The report’s summary of every hyperparameter actually used (PDF p. 19, printed p. 17): the three rows this post concerns, exactly as printed:

Algorithm	Parameters
QuickProp	$\eta = 2$ , $\mu = 1.75$
ADAGRAD	$\eta = 3$
Backward propagation with momentum	$\eta$ exponentially decays from 0.8 at epoch 1 to 0.005 at epoch 25 and higher; $\alpha = 0.2$

Two of those three rows, as the callouts above show, are not what the code actually ran.

What I take from it now

QuickProp’s failure is a clean illustration of what happens when an algorithm’s whole identity rests on one assumption that isn’t checked at runtime: nothing in QuickPropLayer.backwardPropagate ever asks whether the last two gradients actually came from something parabola-shaped. It just fits the parabola through whatever two points it has and jumps, every time, and trusts $\mu$ to catch the worst of it. On the gene dataset that produces exactly the shape in Figure 34: a fast initial drop, because the first few steps genuinely are close to quadratic near a cold start, followed by a slow climb once the curvature estimate stops being trustworthy and the clamp is doing all the work.

ADAGRAD and momentum earn their reputations honestly here, and ADAGRAD earns it almost by accident. The report frames it as “a similar performance to backprop with less parameters to tune,” and the code makes that truer than intended, since one of its two parameters barely does anything. Two decades on, Adagrad’s per-parameter accumulator and the running average that Adam builds on top of it are still the dominant idea in how optimisers are built; QuickProp’s second-order bet mostly wasn’t, outside of a few specialised uses. Fast when its assumption holds, and this post’s whole point, unstable when it doesn’t, was apparently not a trade the field wanted to make twice.

Next in this series: the same contour, but with a population of 64 creatures on it instead of a single point, for the genetic algorithms and particle swarm optimisation.
